Here you can find out how to integrate the reev software into a Compleo charging station.

The integration can be carried out independently in just a few simple steps.


Supported models: SOLO Advanced, DUO, eBox


TABLE OF CONTENTS


What is needed for the integration to take place?

  • A reev operator set has arrived at the operator / CPO (CPO = Charge Point Operator) or contracted service provider. Here you will find the necessary onboarding material such as QR code stickers, SIM card and activation code.
  • A laptop to connect to the charging infrastructure control unit via an RJ45 data cable.
  • An active internet connection via Ethernet or WiFi to connect to the reev backend.



For SOLO and DUO Models:


Below you can see the most important steps for integrating the reev backend in the Compleo interface “Ducto”. If you require more detailed information, please refer to these instructions.

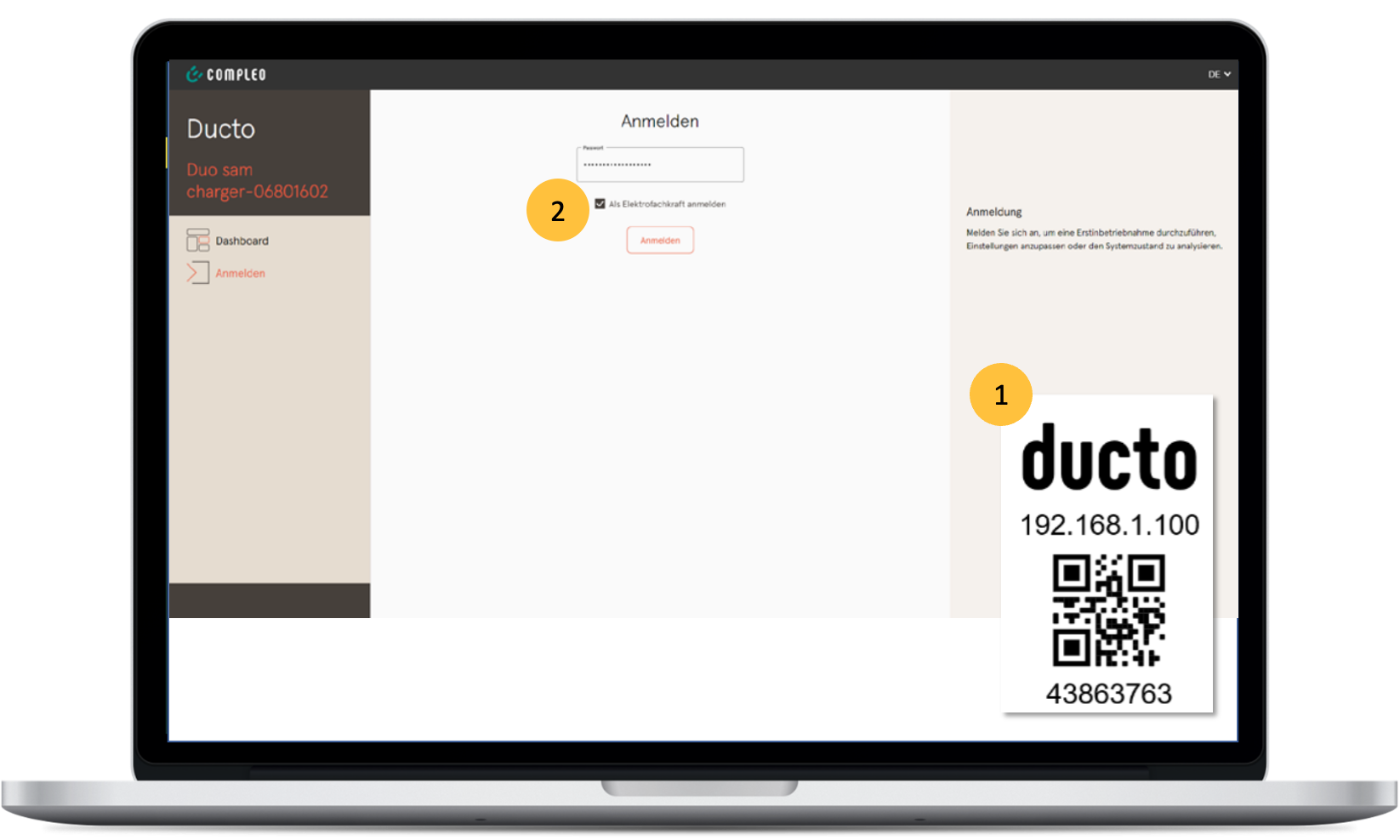

Initial access and login

  1. Scan the QR code on the Ducto sticker, the initial password can be found under the QR code.
  2. Check the box to log in as a qualified electrician.



Network - backend connection via SIM card

  1. Check the “Activate modem” box to enable backend communication via a SIM card.
  2. Enter the following access point name: emonvia

User name and password are not required


If other charging stations are to use the SIM card of this charging station, activate the router function.

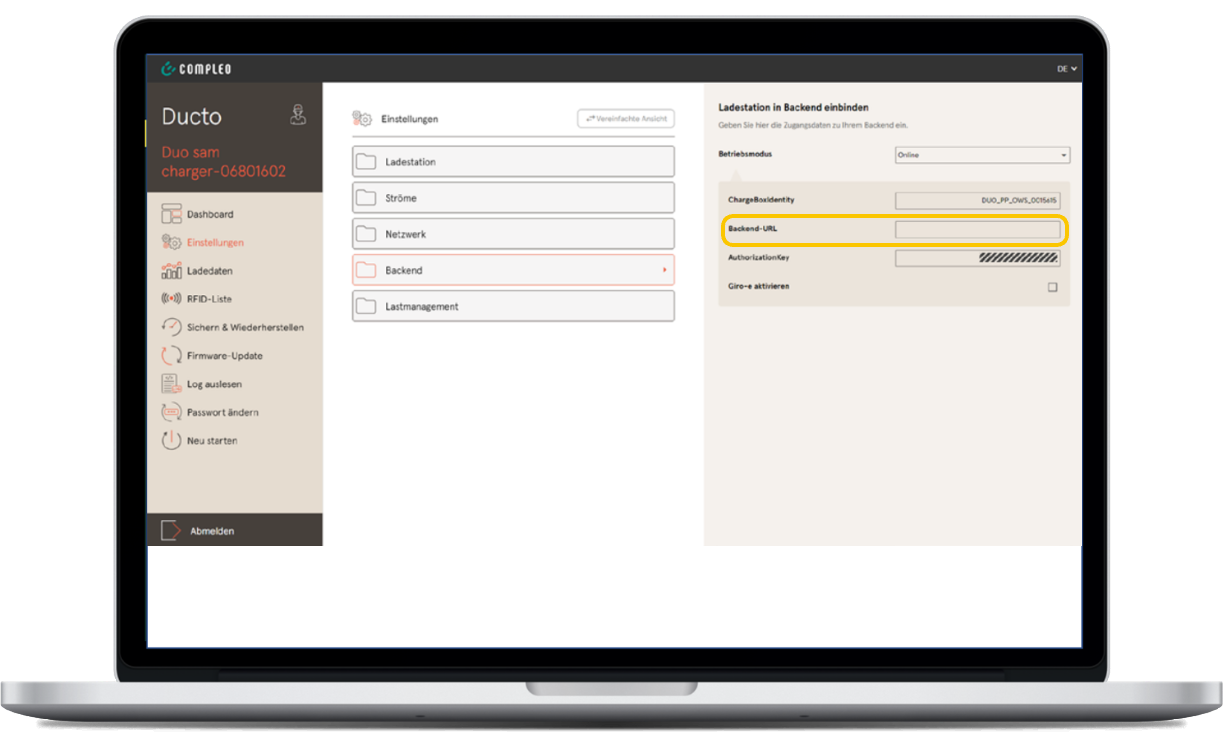

Backend

Enter the following address as the backend URL:

  • wss://ocpp.reev.com
  • Set the operating mode for the backend to Online





For eBox models:


Below you can see the most important steps for integrating the reev backend in the Compleo eConfig app. If you require more detailed information, please refer to these instructions.

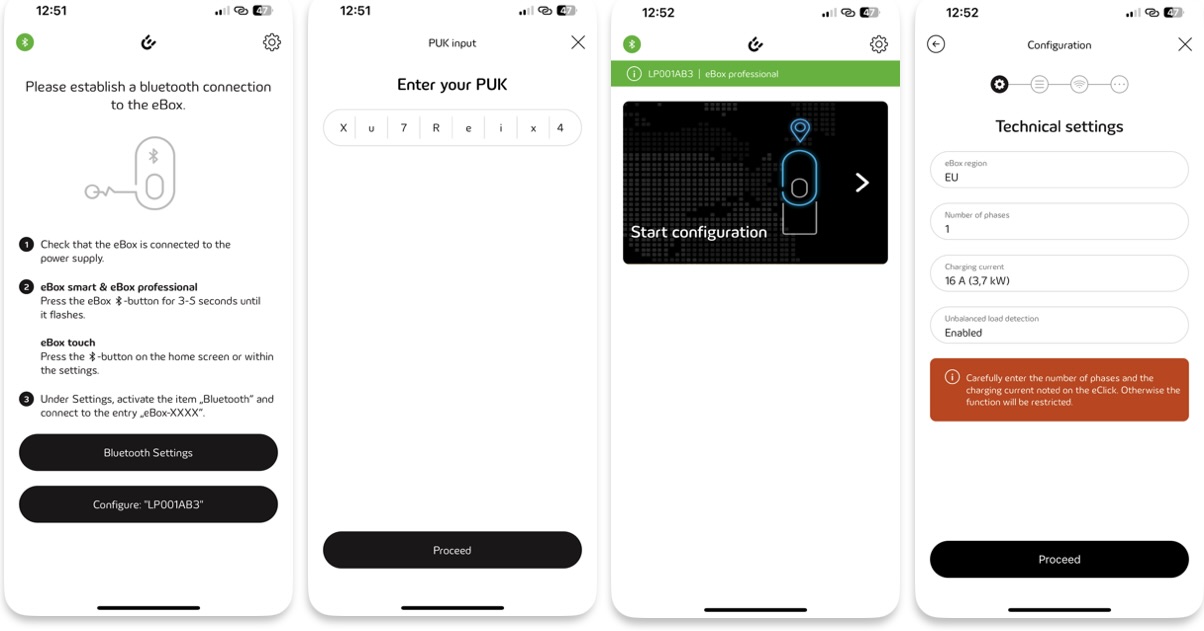

Initial access and login

  1. Connect your cell phone to your eBox via Bluetooth. Then press Configure in the eConfig app.
  2. Enter the PUK that came with the charging station.
  3. Press Start configuration.
  4. Fill in the technical settings.

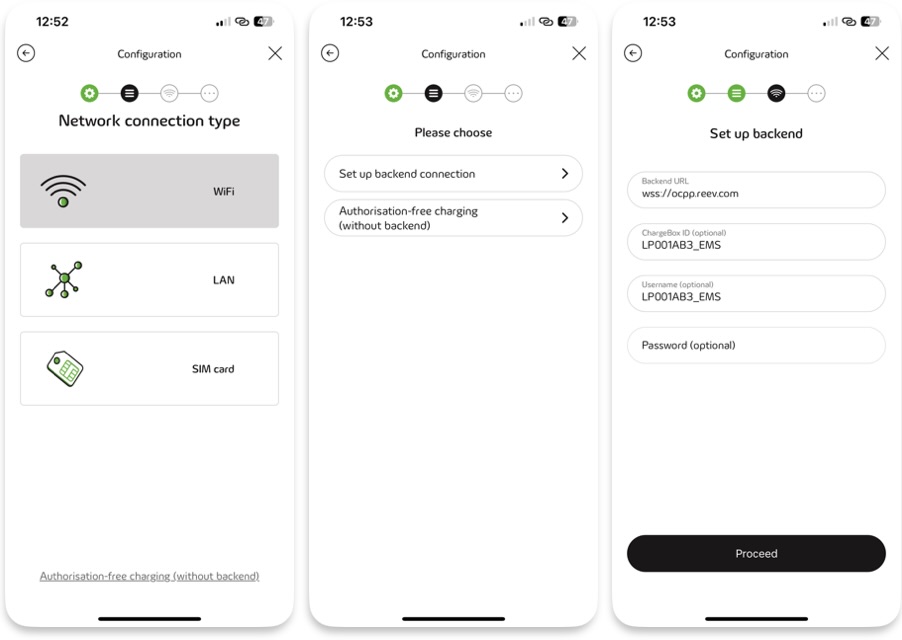

Network and backend

  1. Select the connection type with which the charging station is to be connected. Follow the instructions on the following pages.
  2. Press Set up backend connection.
  3. Enter the following address as the backend URL: wss://ocpp.reev.com





Further steps

  • To be able to use your charging infrastructure to its full extent, please open the following links for onboarding:
  • https://install.reev.com/cpo-onboarding -> For the electrician to obtain and create all the necessary data for the charging infrastructure.
  • https://reev.com/reev-connect-setup/ -> For the operator of the charging infrastructure to obtain and create all the necessary operator data.
