Here you can find out where the serial number of a particular charging station is located. The serial number is required for onboarding the charging station. All manufacturers indicate the serial number of the charging station on the type plate (sometimes also called name plate). The rating plate contains all the important information about the charging station, including the serial number of the charging station.


TABLE OF CONTENTS


ABB - Where can I find the serial number of a charging station?


Terra EV fast charger

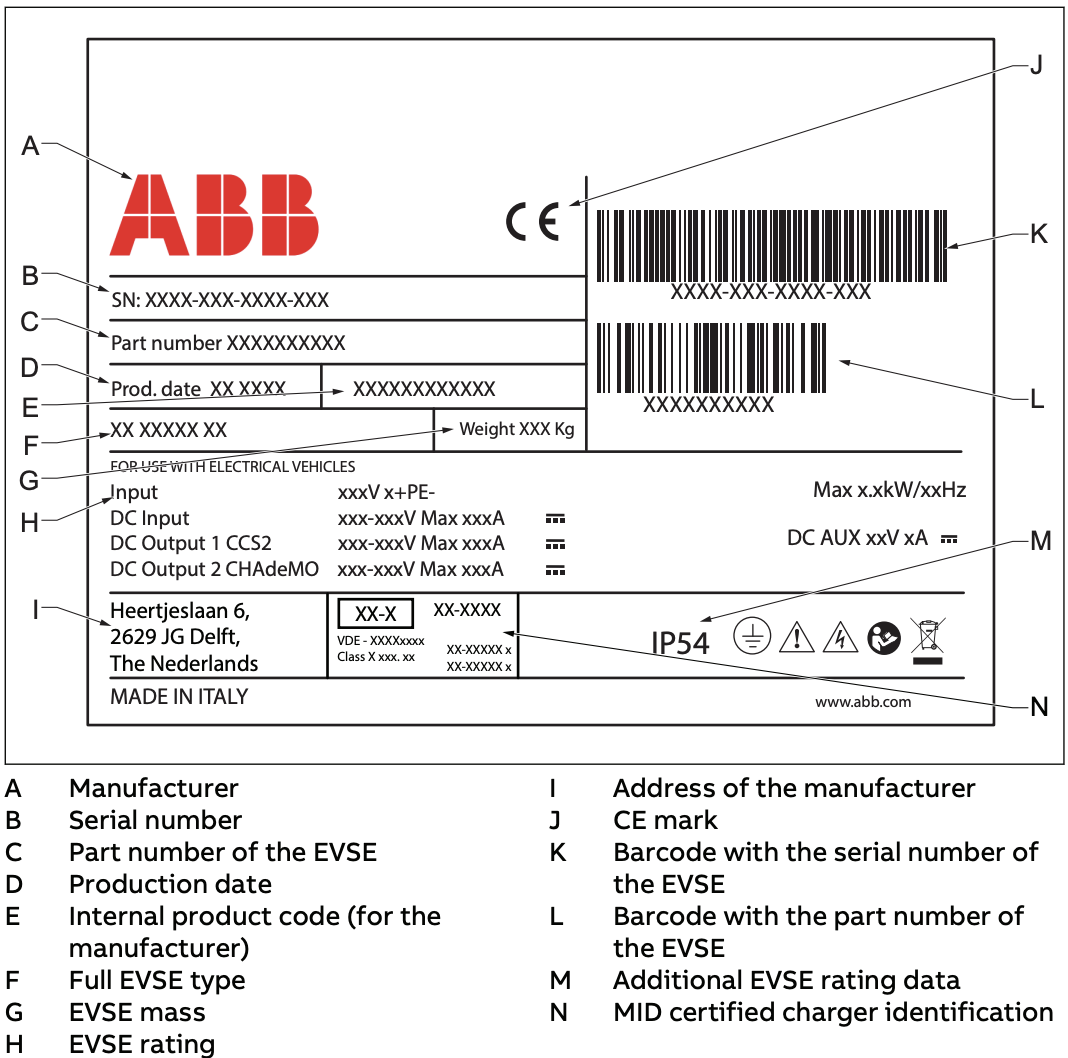

The serial number can be found directly below the top barcode on the type plate. Alternatively, it can be found directly below the logo in the top left-hand corner. Below you will see an example outlined in blue.

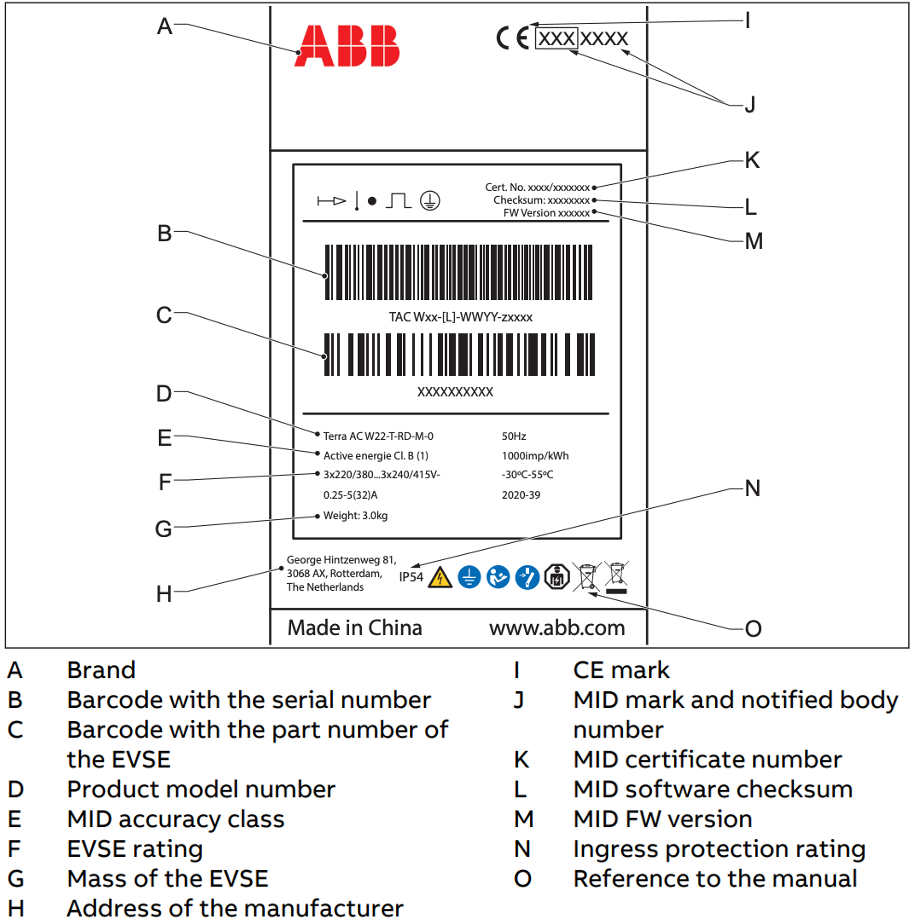

Terra AC Wallbox

The type plate is located on the right side wall of the charging station.

The serial number is located in the second box below the ABB logo.



ABL - Where can I find the serial number of a charging station?

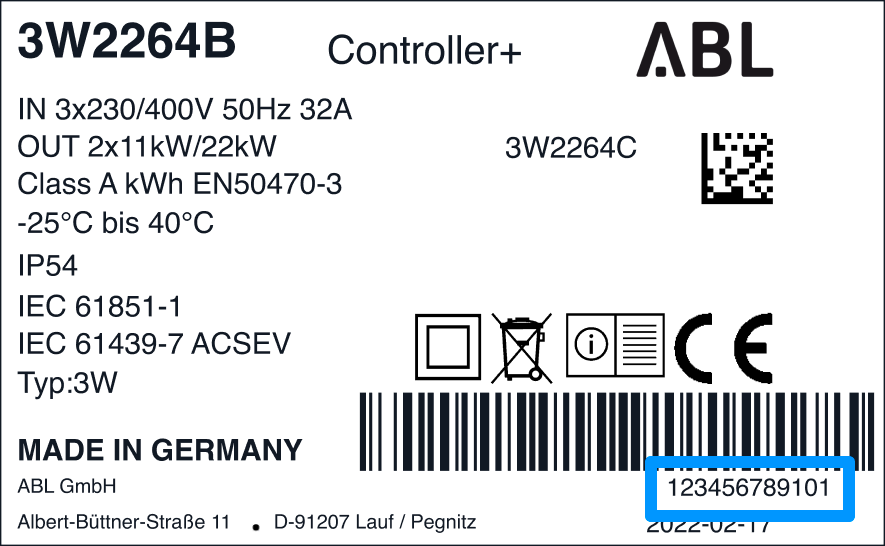

The serial number can be found directly below the barcode on the type plate. Below you will see an example with the serial number outlined in blue.


Alfen - Where can i find the serial number of a charging station?

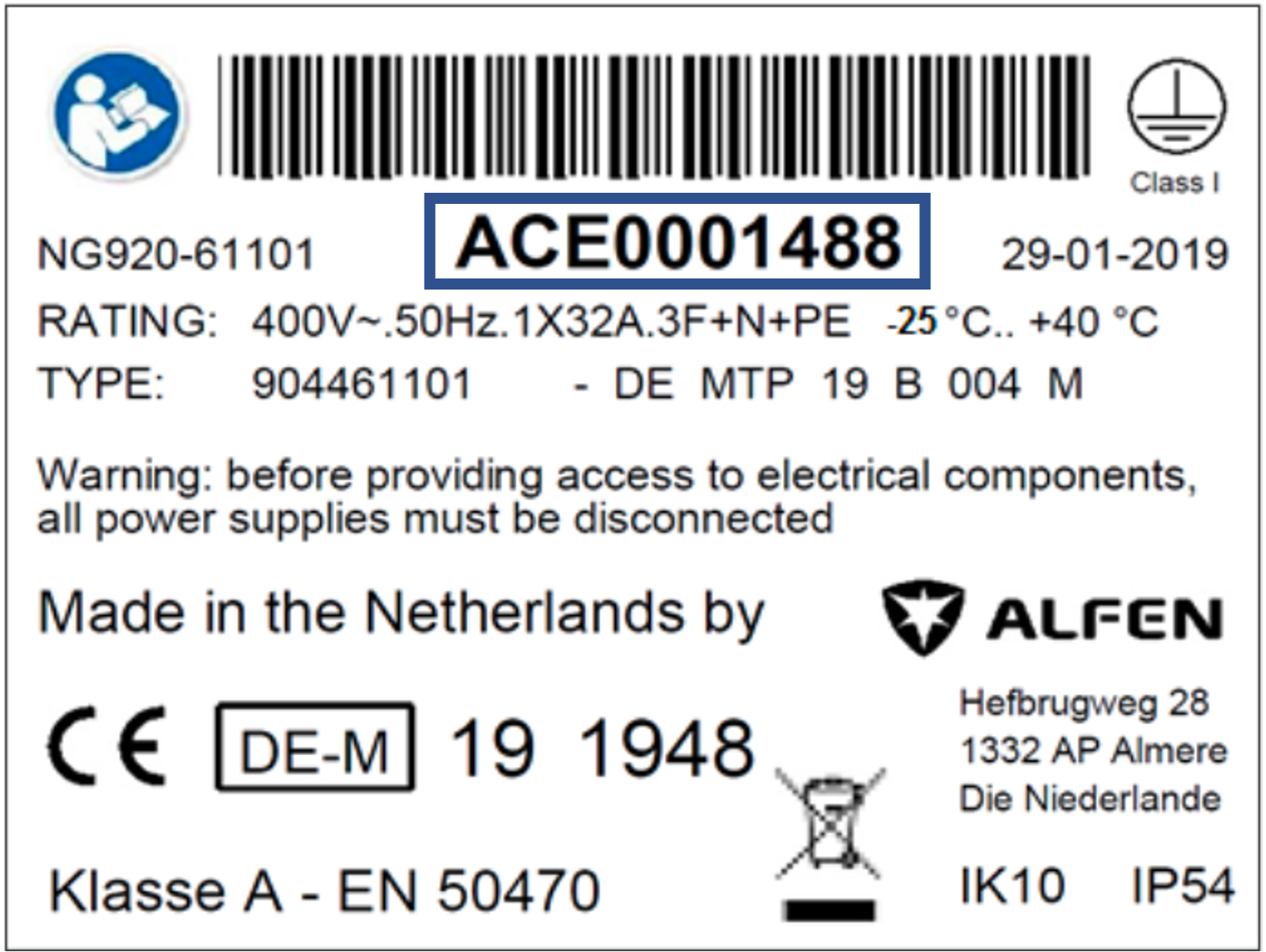

The serial number can be found directly below the barcode on the type plate. Below you will see an example with the serial number outlined in blue.


Alpitronic - Where can I find the serial number of a charging station?


The serial number can be found above the QR code on the type plate. Below you will see an example outlined in blue.


Please note:

At Alpitronic, the serial number required for communication with the backend is made up of the model (yellow marking) and the serial number (blue marking).

Example from the Screenshot: HYC_300_20BZ0001B

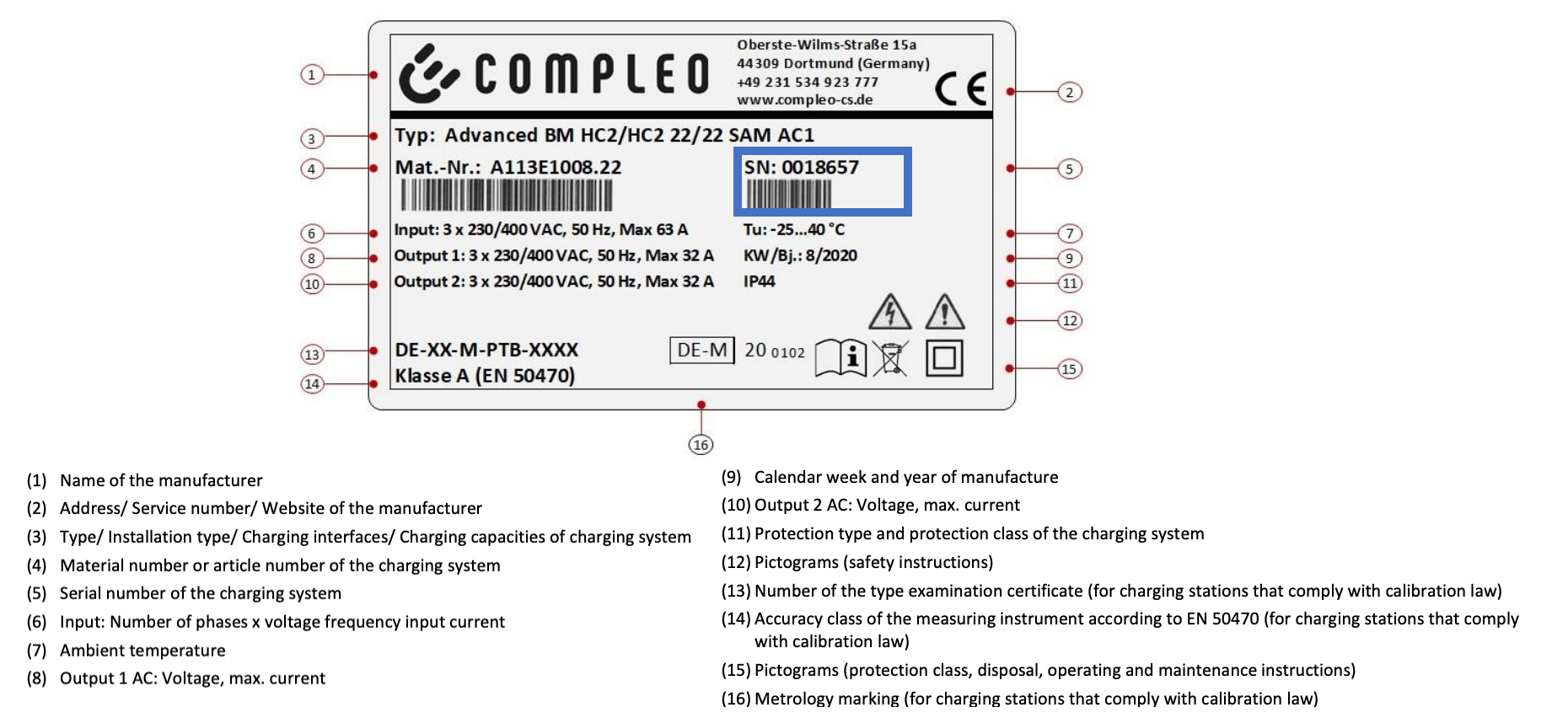

Compleo - Where can I find the serial number of a charging station?

Solo Advanced, DUO, CITO 500

The serial number can be found on the right side of the type plate (highlighted in blue)

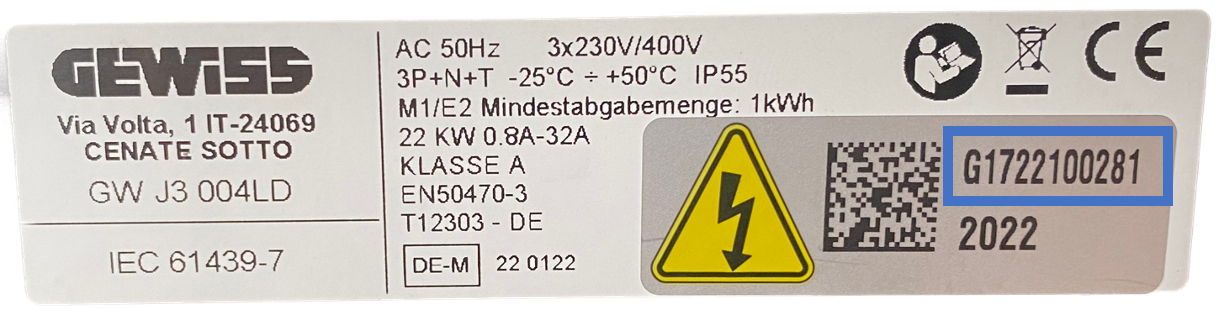

Gewiss - Where can I find the serial number of a charging station?

The type plate is located on the right-hand side of the housing cover.

The serial number can be found to the right of the QR code (outlined in blue)

Hager - Where can I find the serial number of a charging station?

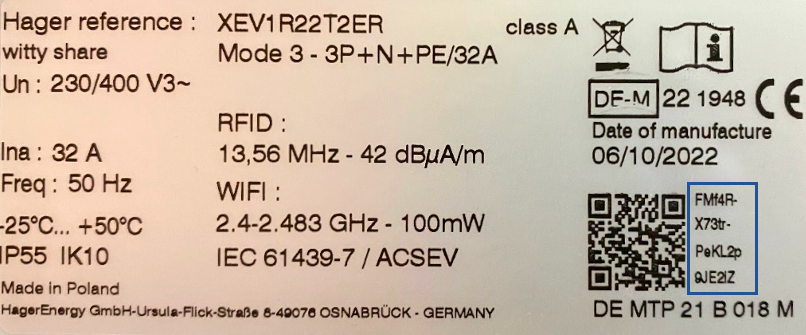

The nameplate can be found at the bottom of the charging station.

The serial number is located on the right of the QR-Code (outlined in blue)

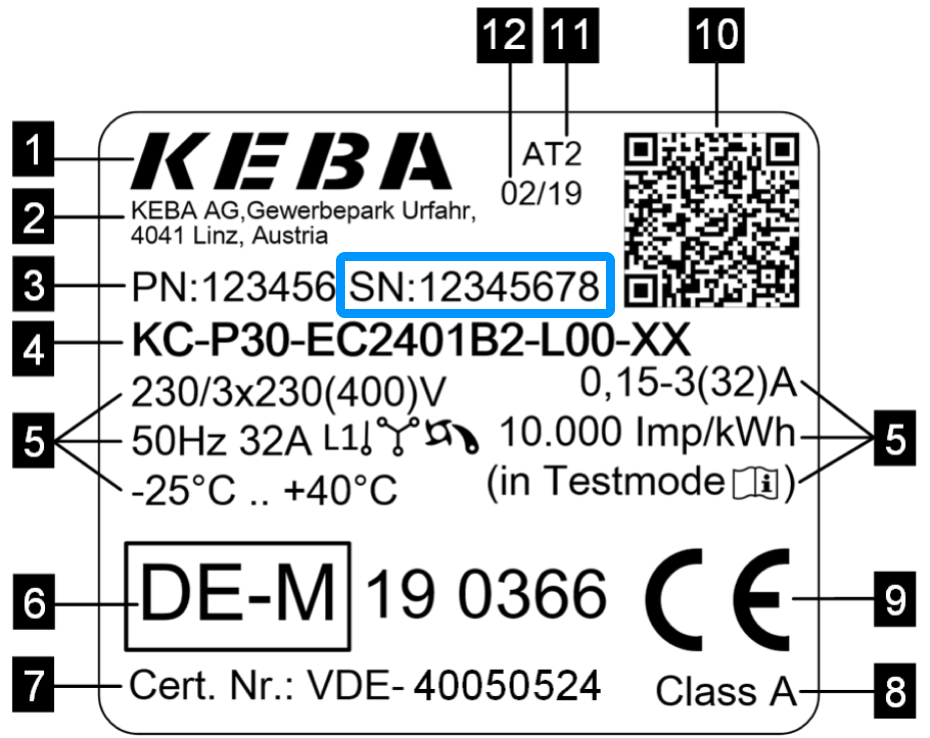

KEBA - Where can I find the serial number of a charging station?


The serial number can be found outlined in blue on the example ID plate below.


Mennekes - Where can I find the serial number of a charging station?

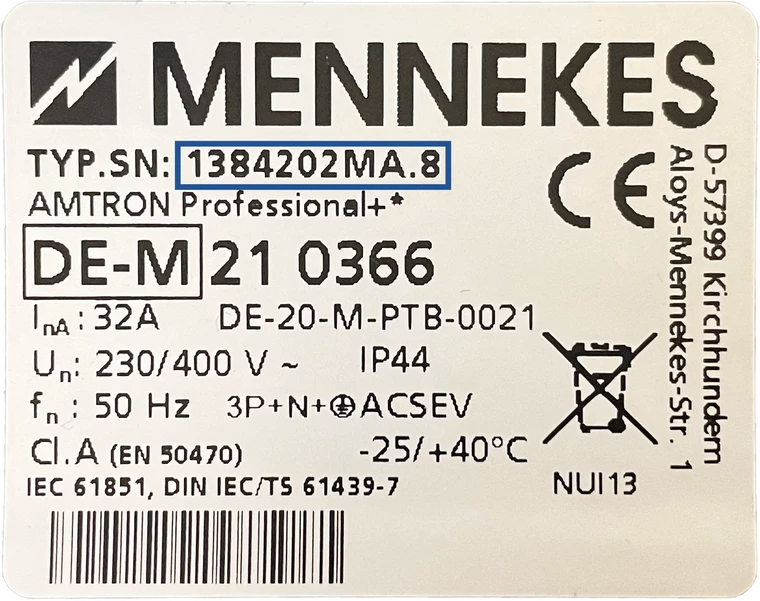

Mennekes - Amtron

The serial number can be found outlined in blue on the example ID plate below.

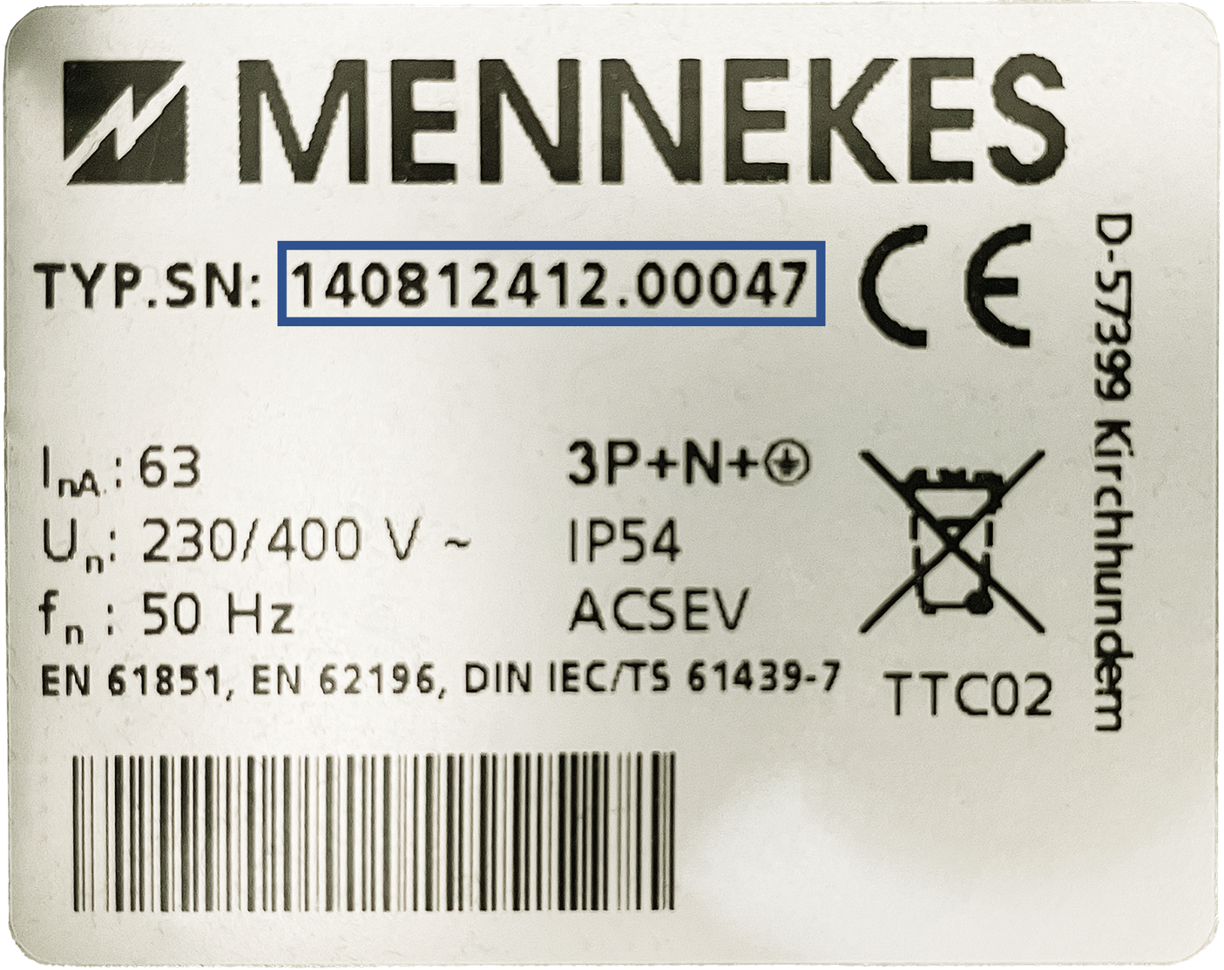

Mennekes - Amedio

The serial number can be found outlined in blue on the example ID plate below.


PC Electric - Where can I find the serial number of a charging station?

The type plate is located on the back of the charging station. You can see the serial number outlined in blue in the screenshot.


Schneider Electric - Where can I find the serial number of a charging station?

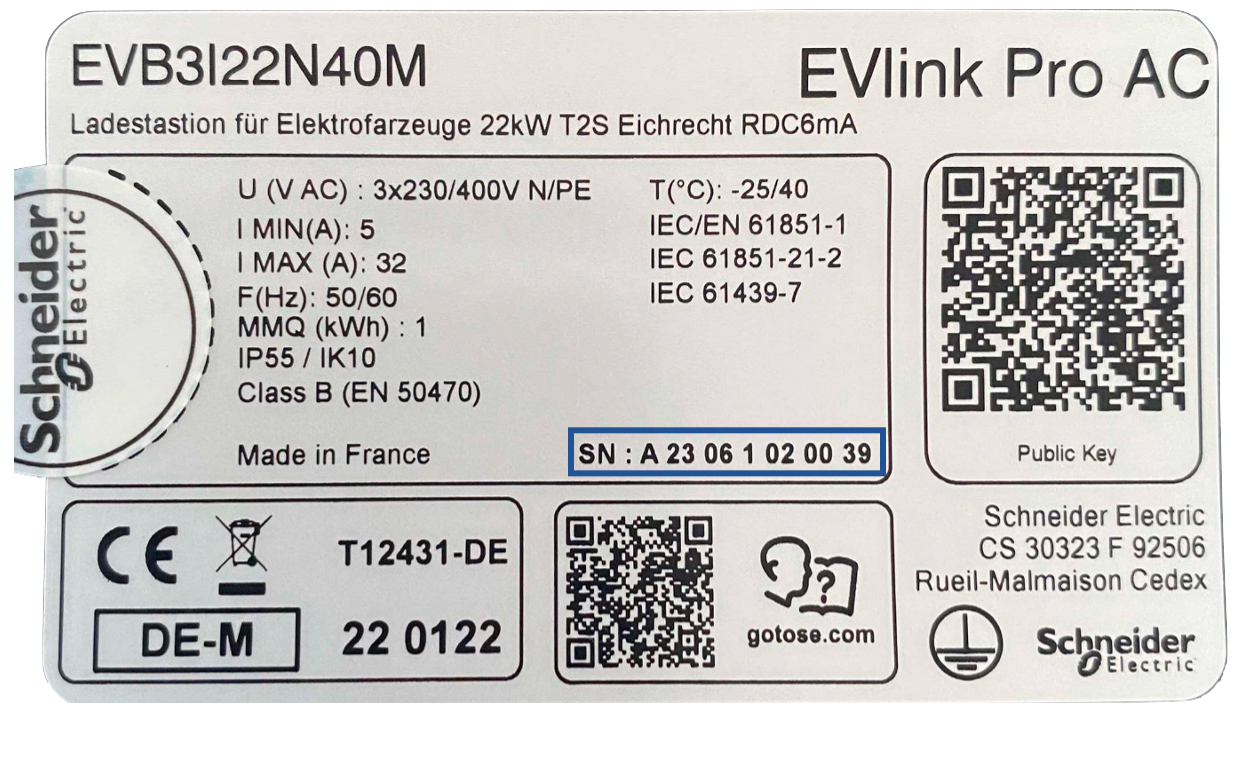

The nameplate can be found on the right side of the charging station.

The serial number can be found in the large box (outlined in blue).

Schneider Electric - Where can I find the serial number of a charging station?

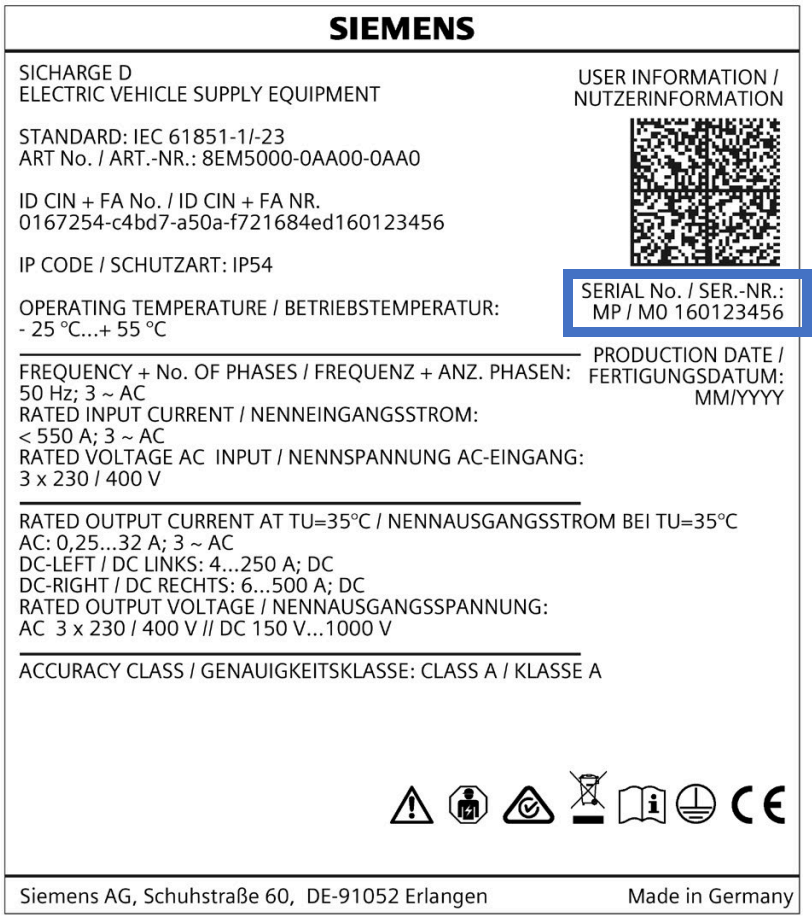

Siemens - SIchargeD

The type plate is located at the bottom right of the left housing wall and at the top inside the front door.

The serial number is located below the QR code (outlined in blue).


Ladestationen von Spelsberg

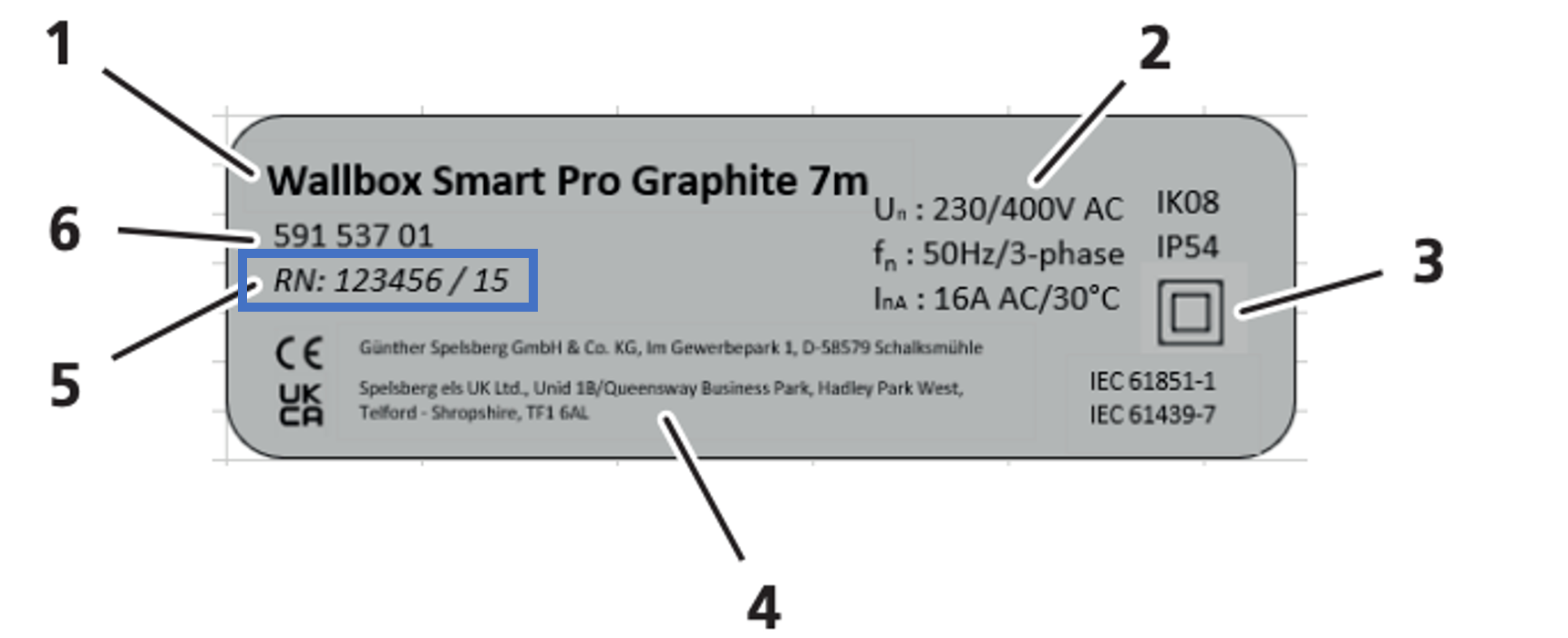

The type plate is located on the front of the charging station, above the Spelsberg logo. You can see the serial number outlined in blue on the screenshot.


1Wallbox Description
2Technical data
3Protection class
4adress of the manufacturer
5serial number
6article number

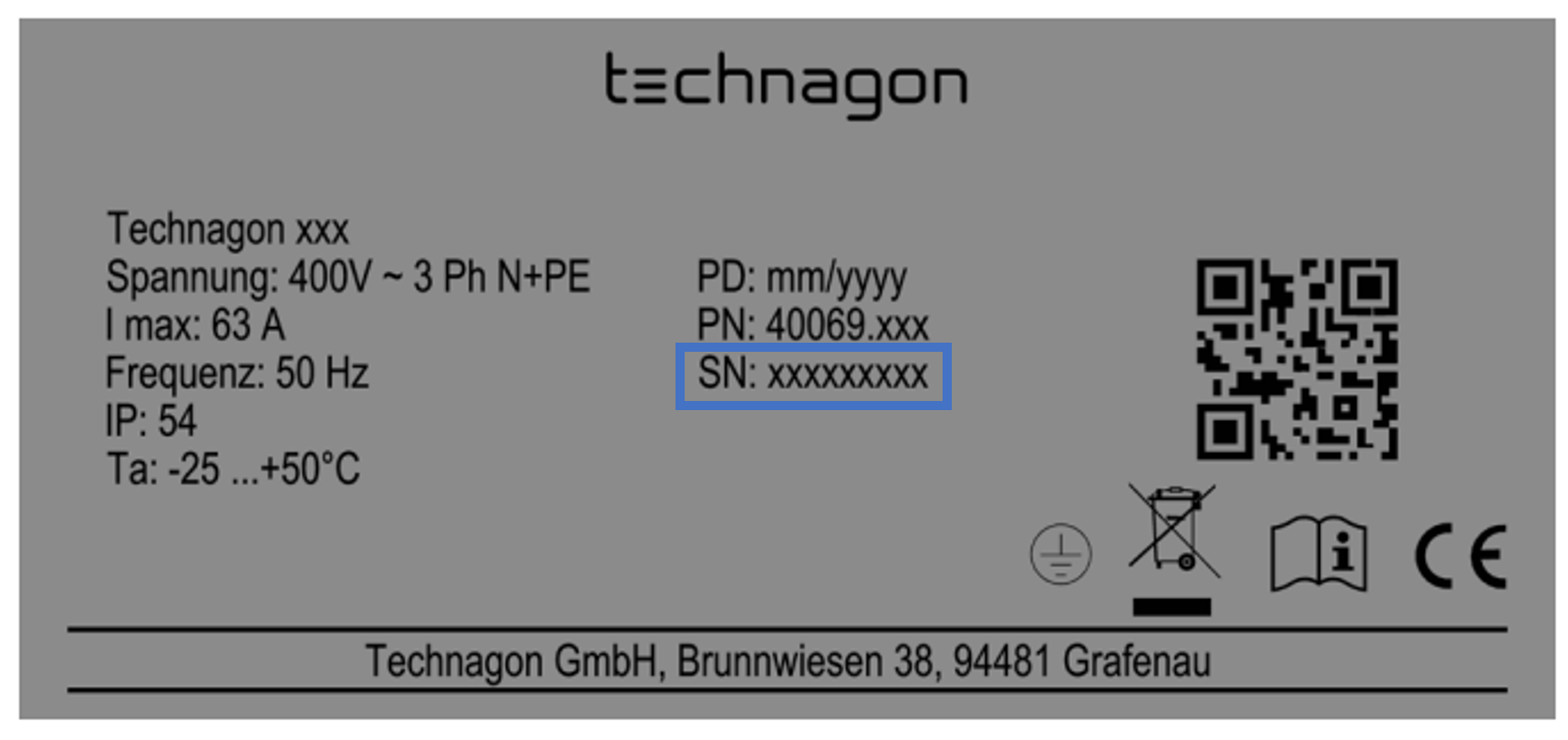

Ladestationen von Technagon

You can see the serial number outlined in blue on the screenshot.

Ladestationen von Walther Werke

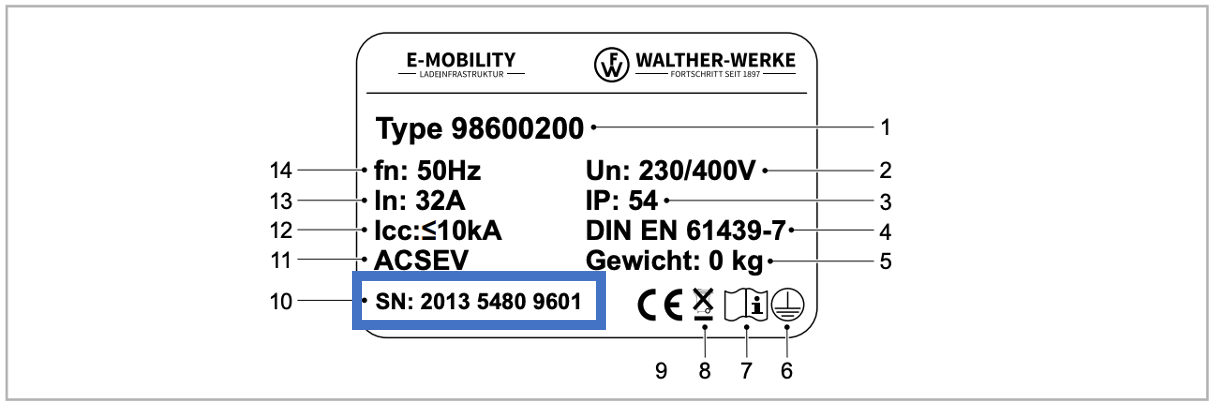

The type plate is located on the right-hand side, below the charging connection. You can see the serial number outlined in blue on the screenshot.



Ladestationen von Zaptec

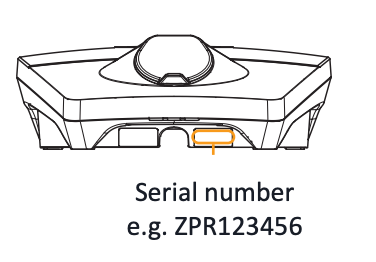

The serial number is located on the top of the charging station (see screenshot).
