Here you can learn how to integrate the reev software into a Charge Amps charging station.

The integration can be done independently in a few simple steps.


Compatible models: Dawn, Dawn Professional


TABLE OF CONTENTS


What is necessary in advance so that the integration can take place

  • The Charge Point Operator (CPO) or contracted service provider must have received the operator set. Here, you will find the necessary onboarding materials, such as QR code sticker, SIM card and activation code
  • Laptop
  • Installer App / Portal
  • An active internet connection
  • An RFID card




Step-by-step Integration.


Before proceeding with further steps, the charge point must be connected to mounted and connected to power by a certified electrician.



a. Install the app


For the Dawn models the configuration takes place via the Charge Amps Installer App. It can be installed using the following links:

Google Play Store: Charge Amps Installer - Google Play
Apple Store: ‎Charge Amps Installer - Apple Store


b. Charging station configuration in the app


  • After the installation of the app, turn the bluetooth functionality on the mobile device on.

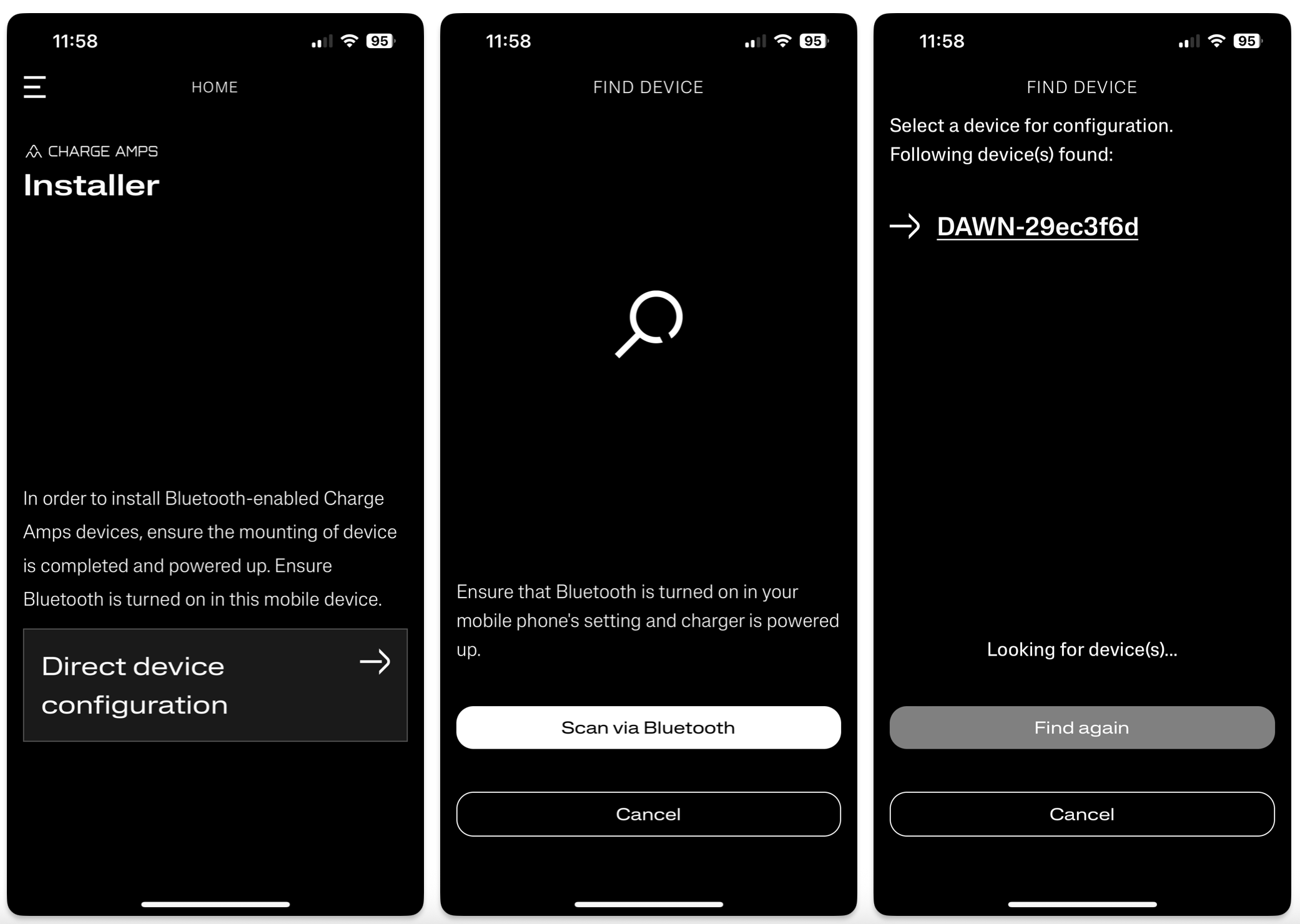

  • Select the "Direct Device Configuration" option as shown below.
  • Choose the "Scan via Bluetooth" option and wait until the charging station is shown in the screen. Select the device that needs to be installed.

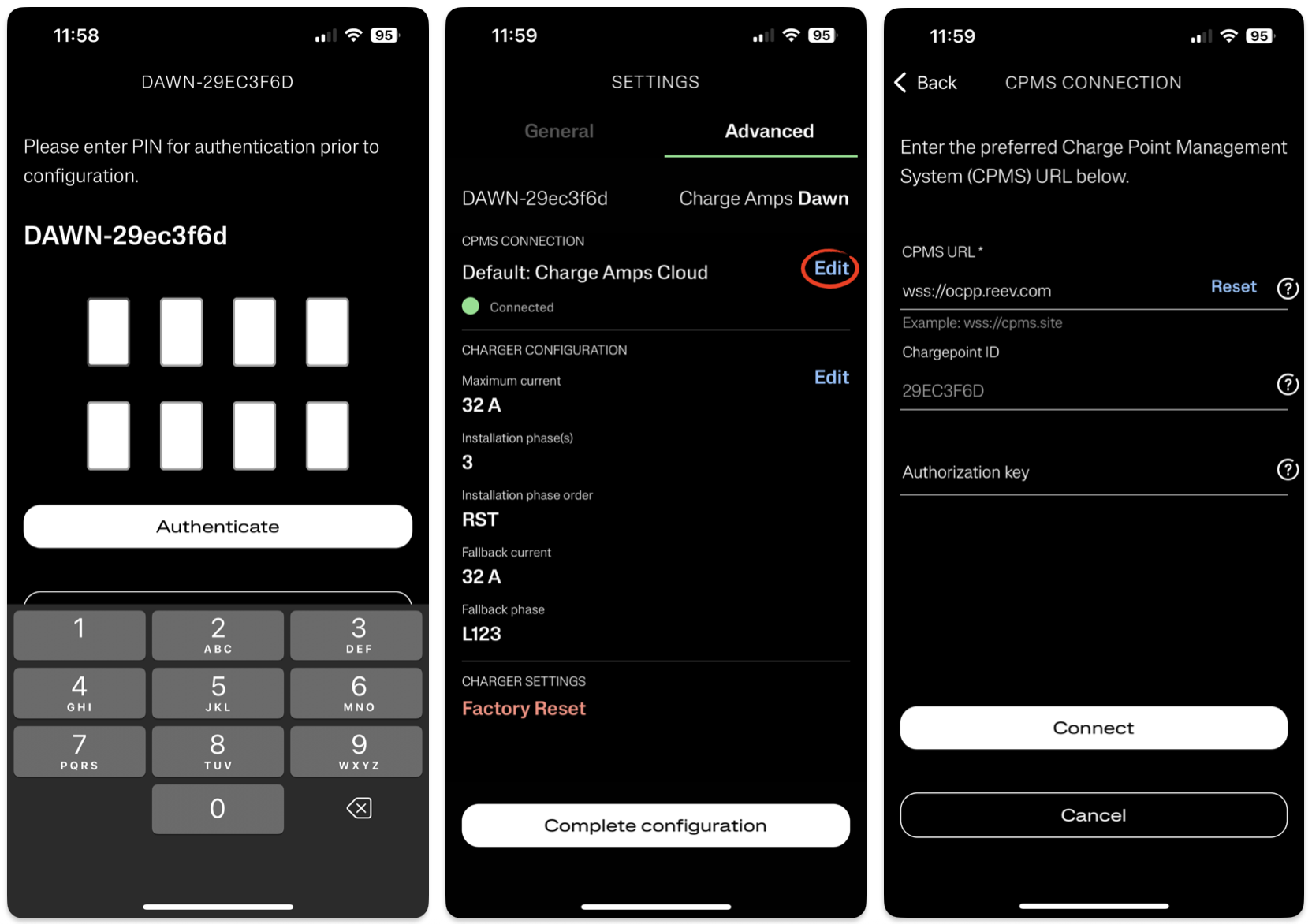

  • After selecting your charger, the installer app will ask for the PIN to authenticate the charge point. The PIN can be found on a sticker on the charge point or in the information found in the box it came in.
  • Once connected and authenticated successfully, navigate to the advanced settings page.
  • Click on the ‘Edit’ button in the ‘CPMS Connection' field. Change the CPMS URL to point towards the reev backend (URL: wss://ocpp.reev.com) and press 'Connect'.





c. Network and Backend Configuration

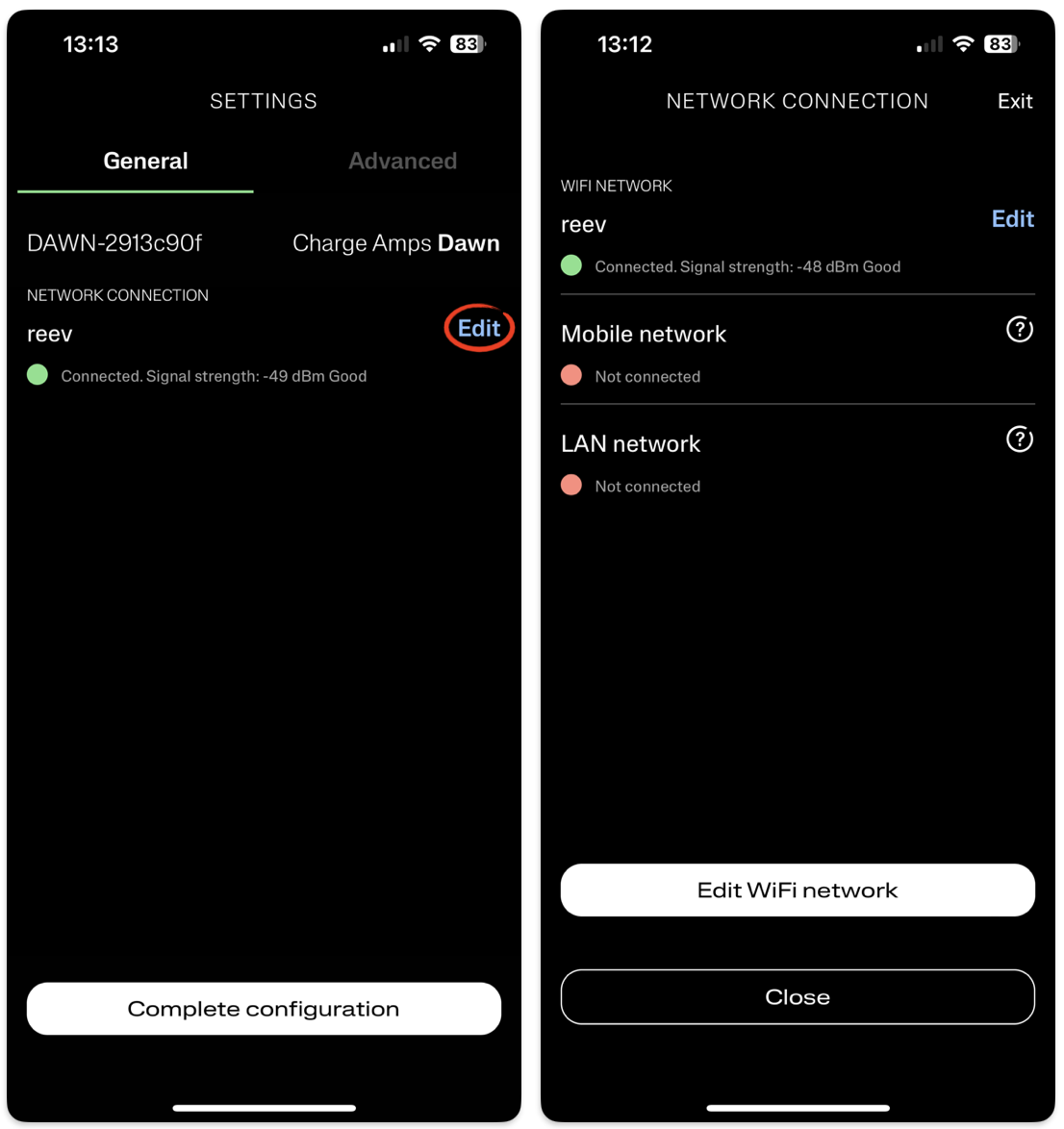

  • To connect the charge point to the Internet, navigate to the general settings. Here you can edit the Network Configuration.
  • Choose a connection method from the options given.
  • Your charge point should now be connected to the internet and to the reev backend!




Further steps

  • In order to be able to fully use your charging infrastructure, we ask you to open the following links for onboarding:
  • https://install.reev.com/cpo-onboarding -> For the electrician to obtain and create all necessary data of the charging infrastructure.
  • https://reev.com/reev-connect-setup/ -> For the operator of the charging infrastructure to obtain and create all necessary operator data.


Support

Do you have further questions or other concerns? Contact us using the button below. If this article does not answer all your questions or you have suggestions for improvement, we look forward to your feedback.




Your reev team
